Drum Type Strip Heater

The drum type strip heater is an industrial heating equipment used for heating long and strip materials. The design of this heater allows the material to maintain continuous movement when passing through the heating zone, achieving a uniform and efficient heating process. It is composed of a series of arranged heating drums, which can be electric or gas heating. They transfer heat to the passing strip materials through heat conduction, and the materials pass through the drums to achieve heating. The drum type strip heater has an adjustable temperature control system to meet the needs of different processing processes, and it is also equipped with an automation control system to achieve higher production efficiency and precise heating control.

Product Parameter

Type AREA Size (mm) Voltage (V) Power (W) Technology
XT-FQTC-Φ250X255 1 area Φ250X255 3X400 8000 1.The use en Vironment temperature  -20 degree C to 60 degree
2.Leakage current less than 0.5mA
3.Insulation resistance more than 5M
4.withstand voltage: 1500V
5.wattage tolerance +5%-10%
XT-FQTC-Φ200X220 2 area Φ200X220 230 4100
XT-FQTC-Φ200X175 3 area Φ200X175 230 2400
XT-FQTC-Φ152/Φ140X310 4 area Φ152/Φ140X310 230 3600
XT-FQTC-Φ305X295 1 area Φ305X295 3X400 1000
XT-FQTC-Φ245X260 2 area Φ245X260 230 4130
XT-FQTC-Φ245X215 3 area Φ245X215 230 3540
XT-FQTC-Φ165/Φ185X365 4 area Φ165/Φ185X365 230 4600
XT-FQTC-Φ217X190 1 area Φ217X190 230 4000
XT-FQTC-Φ170X380 2 area Φ170X380 230 5200
XT-FQTC-Φ123X220 3 area Φ123X220 230 2600
XT-FQTC-Φ375X345 1 area Φ375X345 3X400 16000
XT-FQTC-Φ295X315 2 area Φ295X315 230 6350
XT-FQTC-Φ295X255 3 area Φ295X255 230 4940
XT-FQTC-Φ215/Φ195X430 4 area Φ215/Φ195X430 230 5930
XT-FQTC-Φ350X360 1 area Φ350X360 3X400 18000
XT-FQTC-Φ350X120 2 area Φ350X120 3X400 6500
XT-FQTC-Φ310X350 3 area Φ310X350 3X400 8600
XT-FQTC-Φ280X300 4 area Φ280X300 3X400 4600
XT-FQTC-Φ250X290 5 area Φ250X290 3X400 4200
XT-FQTC-Φ250/Φ210X510 6 area Φ250/Φ210X510 3X400 8600
XT-FQTC-Φ75X162   Φ75X162 230 1400
XT-FQTC-Φ90X220   Φ90X220 230 1500
XT-FQTC-Φ130X280   Φ130X280 230 2200
XT-FQTC-Φ140X325   Φ140X325 230 4000
XT-FQTC-Φ150X420   Φ150X420 400 5000
XT-FQTC-Φ175X460   Φ175X460 400 7000
XT-FQTC-Φ200X550   Φ200X550 400 12000

Message Inquiry

Send Message

Shipment

provides customers with quality and safe transportation.

air duct heater package

Heater equipements LCL shipment

heater packed on steel pallet

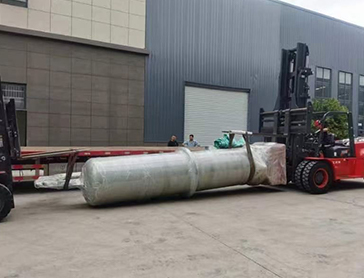

Immersion heater packing1

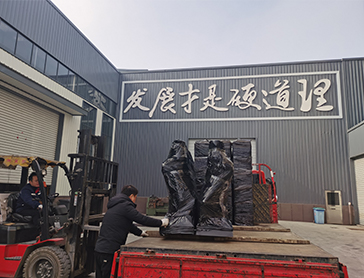

LCL loading 3

LCL shipment loading 2

LCL shipment

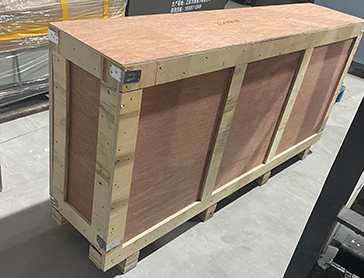

plywood package 2

Get our catalog

Find the Solution for Your Business Needs.

About sinton
Jiangsu Sinton Group Co.,Ltd.
Jiangsu Sinton Group Co.,Ltd.

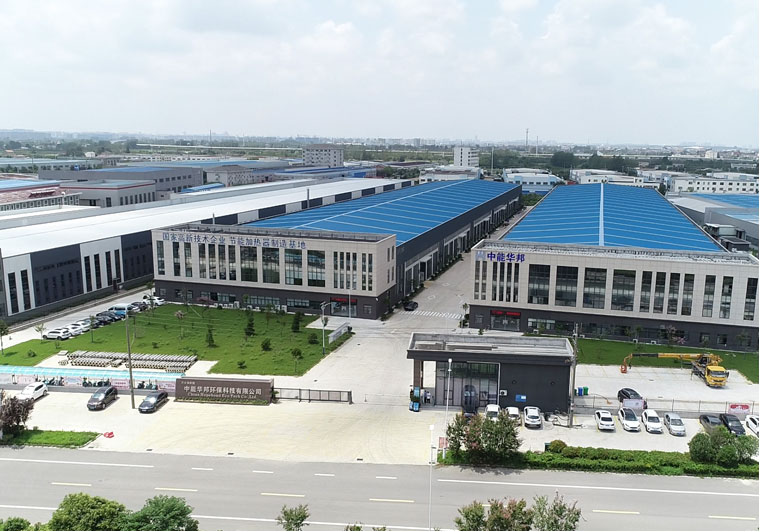

Prosperity by Giving up, Peace by Virtue, Charming Sinton, Happy Sinton".Sinton Group, created at Yancheng City, Jiangsu Province. Sinton Electric Co.,Ltd. is one subcompany of Sinton group which sarted its business in 2001,We have formed a comprehensive group with energy-saving heating products as the mainstay, including import and export trade. Sinton’s production base is its subsidiary China Hopebond Eco Tech Co., Ltd., is a national high-tech enterprise. The self-built 60-mu factory is located in Tinghu Environmental Protection Industrial Park. It has a production plant of 20,000 square meters and a R&D center of 3,600 square meters. It focuses on technological innovation and brand creation. As a famous China Drum Type Strip Heater Factory and Drum Type Strip Heater Suppliers. Specializing in the production of explosion-proof and non explosion-proof heaters, air duct heaters, pipeline heaters, circulation heaters, electric drying machines, heat-conducting oil furnaces, Electromagnetic coil heater and all kinds of electric heating element, as the direct thermal energy providing element or preheater of project. The products are mainly suitable for high temperature heating environment of 50-1000℃, and are widely used in environmental protection, medical treatment, coal mining, petroleum, chemical industry, textile, plastics, heating, agriculture, animal husbandry and other fields, and to promote the development of Zero-Carbon Economy and green earth conversion.
