Heating Equipment

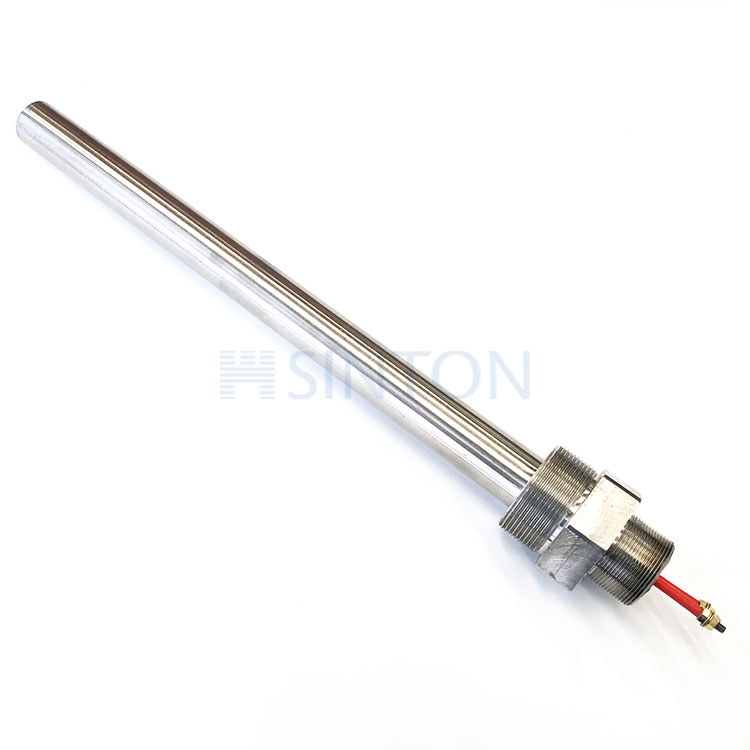

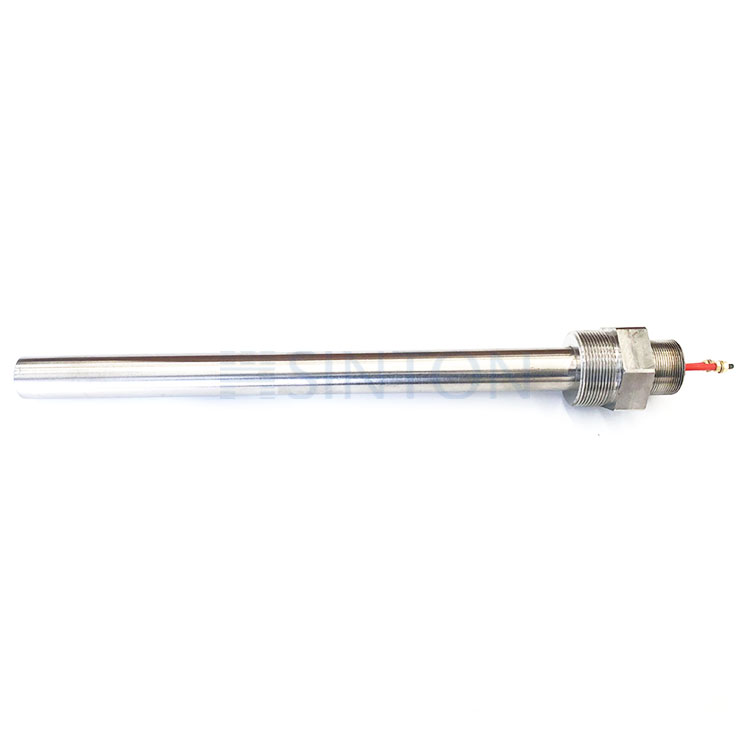

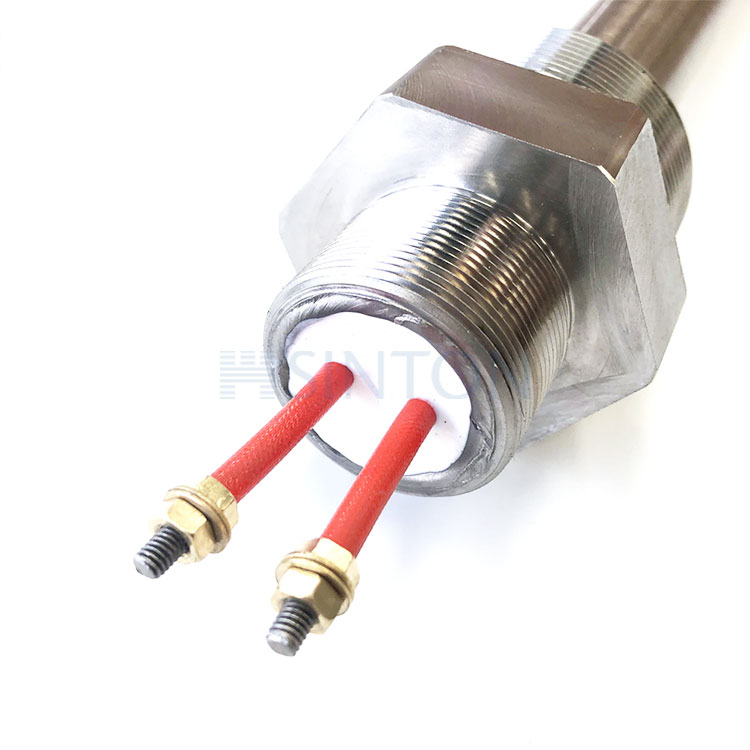

Water circulation Cartridge Heaters use a water circulation system as a medium to transfer heat, ensuring that the heated object or area can achieve stable and even temperature distribution. Water has excellent properties as a heat transfer medium, making this heater highly efficient and able to quickly transfer heat to the object to be heated, thereby improving heating efficiency and shortening heating time. At the same time, water circulation carbonized tube heaters usually have adjustable temperature and heating power, which can be adjusted according to actual needs to ensure precise control and optimal results of the heating process. In addition, since water is a safe heating medium and water circulation systems usually have safety control measures, water circulation carbonized tube heaters are relatively safe and reduce the risk of fire and safety accidents. In terms of application fields, water circulation carbonized tube heaters have a wide range of uses. In the field of industrial heating, they are widely used to heat various equipment, machines and processes. For example, in the chemical industry, they can be used to heat reaction kettles or reactors; in the pharmaceutical industry, they can be used to heat reaction tanks or drying equipment. In the electronics manufacturing process, water circulation carbonized tube heaters are often used to heat semiconductor equipment, vacuum furnaces, and hot presses to control temperature and ensure normal operation of the equipment. In the food processing industry, water circulation carbonized tube heaters are often used to heat cooking equipment, baking ovens and steaming equipment to achieve food heating, baking, steaming and other processing processes. In the field of environmental control, water circulation carbonized tube heaters are also commonly used to heat greenhouses, greenhouses, and farms to maintain appropriate temperature and humidity conditions and provide a good growth environment.
Product Parameter
SIZE |
CUSTOMIZED |
MATERIAL |
SS304/SS316 |
VOLTAGE |
12-240v |
POWER |
CUSTOMIZED |
SURFACE LOADING |
2-30W/CM2 |
THREAD STANARD |
GB/BSP/NPT |
LEAD WIRE |
CUSTOMIZED |
APPLICATION |
WATER, AIR, OIL, MOULD etc. |
Model | Voltage(V) | Power(W) | High temperature wire length(mm) |
φ6X30 | 220 | 60 | 250 |
φ6X40 | 220 | 80 | 250 |
φ6X50 | 220 | 100 | 250 |
φ6X60 | 220 | 100 | 250 |
φ6X70 | 220 | 120 | 250 |
φ6X80 | 220 | 120 | 250 |
φ6X100 | 220 | 150 | 250 |
φ6X120 | 220 | 200 | 250 |
φ6X150 | 220 | 250 | 250 |
φ6X200 | 220 | 250 | 250 |
φ6X250 | 220 | 300 | 250 |
φ6X300 | 220 | 350 | 250 |
φ8X30 | 220 | 80 | 250 |
φ8X40 | 220 | 100 | 250 |
φ8X50 | 220 | 100 | 250 |
φ8X60 | 220 | 100 | 250 |
φ8X70 | 220 | 120 | 250 |
φ8X80 | 220 | 120 | 250 |
φ8X100 | 220 | 150 | 250 |
φ8X120 | 220 | 200 | 250 |
φ8X150 | 220 | 250 | 250 |
φ8X200 | 220 | 300 | 250 |
φ8X250 | 220 | 400 | 250 |
φ8X300 | 220 | 450 | 250 |
φ10X30 | 220 | 80 | 250 |
φ10X40 | 220 | 100 | 250 |
φ10X50 | 220 | 100 | 250 |
φ10X60 | 220 | 120 | 250 |
φ10X70 | 220 | 150 | 250 |
φ10X80 | 220 | 150 | 250 |
φ10X90 | 220 | 200 | 250 |
φ10X100 | 220 | 200 | 250 |
φ10X120 | 220 | 250 | 250 |
φ10X150 | 220 | 300 | 250 |
φ10X180 | 220 | 350 | 250 |
φ10X200 | 220 | 400 | 250 |
φ10X220 | 220 | 450 | 250 |
φ10X250 | 220 | 500 | 250 |
φ10X280 | 220 | 550 | 250 |
φ10X300 | 220 | 600 | 250 |
φ10X320 | 220 | 650 | 250 |
φ10X350 | 220 | 700 | 250 |
φ10X400 | 220 | 800 | 250 |
φ10X450 | 220 | 800 | 250 |
φ10X500 | 220 | 1000 | 250 |
φ10X550 | 220 | 1000 | 250 |
φ10X600 | 220 | 1000 | 250 |
φ12X30 | 220 | 80 | 250 |
φ12X35 | 220 | 100 | 250 |
φ12X40 | 220 | 100 | 250 |
φ12X50 | 220 | 120 | 250 |
φ12X60 | 220 | 150 | 250 |
φ12X70 | 220 | 150 | 250 |
φ12X80 | 220 | 150 | 250 |
φ12X90 | 220 | 200 | 250 |
φ12X100 | 220 | 200 | 250 |
φ12X120 | 220 | 250 | 250 |
φ12X150 | 220 | 300 | 250 |
φ12X180 | 220 | 350 | 250 |
φ12X200 | 220 | 400 | 250 |
φ12X220 | 220 | 450 | 250 |
φ12X250 | 220 | 500 | 250 |
φ12X280 | 220 | 550 | 250 |
φ12X300 | 220 | 600 | 250 |
φ12X320 | 220 | 650 | 250 |
φ12X350 | 220 | 700 | 250 |
φ12X400 | 220 | 800 | 250 |
φ12X450 | 220 | 900 | 250 |
φ12X500 | 220 | 1000 | 250 |
φ12X550 | 220 | 1000 | 250 |
φ12X600 | 220 | 1200 | 250 |
φ14X50 | 220 | 150 | 250 |
φ14X60 | 220 | 150 | 250 |
φ14X70 | 220 | 150 | 250 |
φ14X80 | 220 | 200 | 250 |
φ14X100 | 220 | 250 | 250 |
φ14X120 | 220 | 250 | 250 |
φ14X150 | 220 | 350 | 250 |
φ14X200 | 220 | 400 | 250 |
φ14X250 | 220 | 500 | 250 |
φ14X300 | 220 | 600 | 250 |
φ14X350 | 220 | 700 | 250 |
φ14X400 | 220 | 800 | 250 |
φ14X450 | 220 | 900 | 250 |
φ14X500 | 220 | 1000 | 250 |
φ16X50 | 220 | 150 | 250 |
φ16X60 | 220 | 150 | 250 |
φ16X70 | 220 | 200 | 250 |
φ16X80 | 220 | 200 | 250 |
φ16X100 | 220 | 250 | 250 |
φ16X120 | 220 | 300 | 250 |
φ16X140 | 220 | 350 | 250 |
φ16X150 | 220 | 350 | 250 |
φ16X160 | 220 | 350 | 250 |
φ16X180 | 220 | 400 | 250 |
φ16X200 | 220 | 450 | 250 |
φ16X220 | 220 | 500 | 250 |
φ16X250 | 220 | 600 | 250 |
φ16X275 | 220 | 600 | 250 |
φ16X300 | 220 | 700 | 250 |
φ16X320 | 220 | 700 | 250 |
φ16X350 | 220 | 800 | 250 |
φ16X380 | 220 | 900 | 250 |
φ16X400 | 220 | 1000 | 250 |
φ16X420 | 220 | 1000 | 250 |
φ16X450 | 220 | 1100 | 250 |
φ16X480 | 220 | 1100 | 250 |
φ16X500 | 220 | 1200 | 250 |
φ16X550 | 220 | 1300 | 250 |
φ16X600 | 220 | 1500 | 250 |
φ16X650 | 220 | 1500 | 250 |
φ16X700 | 220 | 1600 | 250 |
φ16X750 | 220 | 1800 | 250 |
φ16X800 | 220 | 1800 | 250 |
φ18X100 | 220 | 250 | 250 |
φ18X120 | 220 | 300 | 250 |
φ18X150 | 220 | 350 | 250 |
φ18X200 | 220 | 450 | 250 |
φ18X250 | 220 | 600 | 250 |
φ18X300 | 220 | 800 | 250 |
φ20X70 | 220 | 200 | 250 |
φ20X80 | 220 | 200 | 250 |
φ20X100 | 220 | 250 | 250 |
φ20X120 | 220 | 300 | 250 |
φ20X150 | 220 | 350 | 250 |
φ20X180 | 220 | 400 | 250 |
φ20X200 | 220 | 500 | 250 |
φ20X220 | 220 | 500 | 250 |
φ20X250 | 220 | 600 | 250 |
φ20X280 | 220 | 700 | 250 |
φ20X300 | 220 | 800 | 250 |
φ20X320 | 220 | 800 | 250 |
φ20X350 | 220 | 1000 | 250 |
φ20X375 | 220 | 1000 | 250 |
φ20X400 | 220 | 1000 | 250 |
φ20X420 | 220 | 1100 | 250 |
φ20X450 | 220 | 1200 | 250 |
φ20X480 | 220 | 1400 | 250 |
φ20X500 | 220 | 1500 | 250 |
φ20X520 | 220 | 1500 | 250 |
φ20X550 | 220 | 1500 | 250 |
φ20X580 | 220 | 1500 | 250 |
φ20X600 | 220 | 1600 | 250 |
φ20X650 | 220 | 1600 | 250 |
φ20X700 | 220 | 1800 | 250 |
φ20X750 | 220 | 1800 | 250 |
φ20X800 | 220 | 2000 | 250 |
φ20X850 | 220 | 2000 | 250 |
φ20X900 | 220 | 2000 | 250 |
φ20X1000 | 220 | 2200 | 250 |
