2-30w/Cm2 High Performance Cartridge Heaters Custom

Home / Browse Products / Cartridge Heater / Cartridge Heaters / 2-30w/Cm2 High Performance Cartridge Heaters

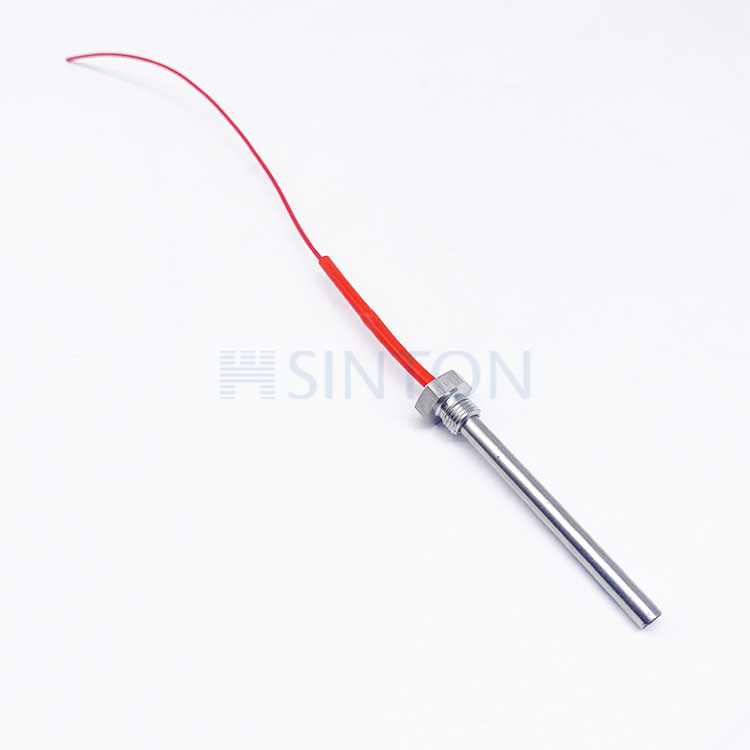

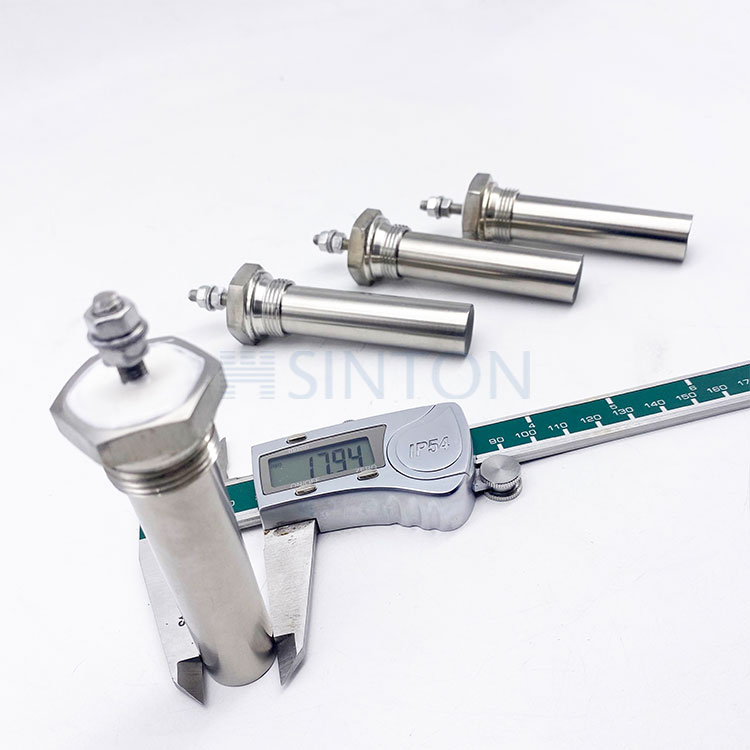

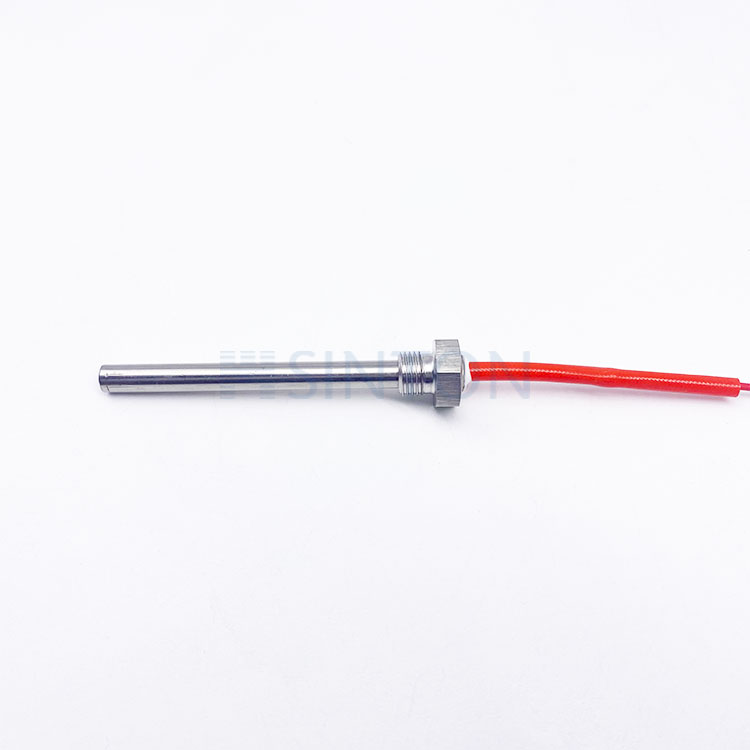

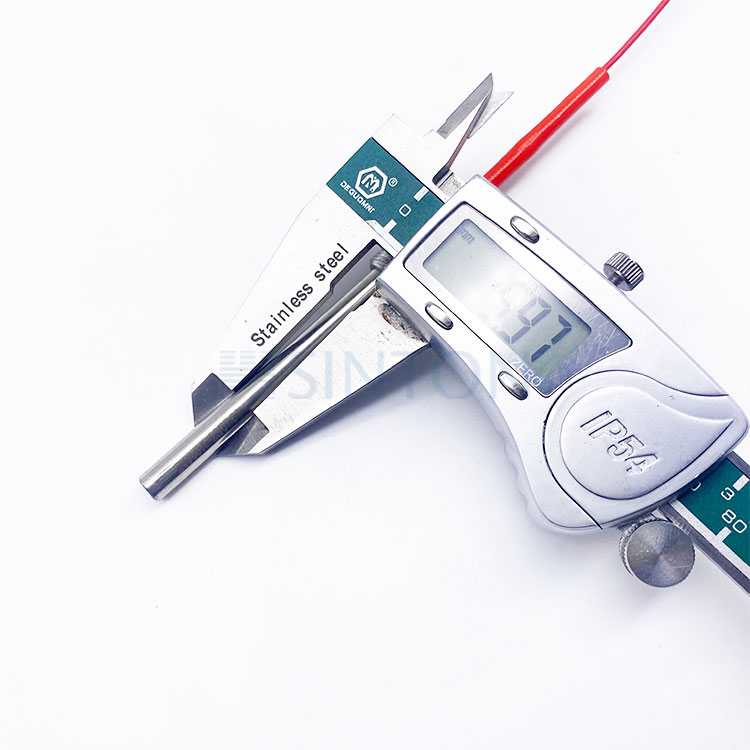

2-30w/Cm2 High Performance Cartridge Heaters

2-30W/CM2 high-performance electric heating tube heater is a heating equipment widely used in industrial and commercial fields. This type of heater usually consists of a metal tube filled with a heating element, such as resistive wire or band. Metal pipes can be made of stainless steel, nickel alloy or other high temperature resistant materials to ensure their stability and corrosion resistance in high temperature environments. The heating element is usually mounted in the center of the tube to ensure even heating. In the 2-30W/CM2 high-performance electric heating tube heater, "2-30W/CM2" represents the power density per unit area, usually expressed in watts per square centimeter. The power density of such heaters ranges from 2 to 30 watts per square centimeter. This means an energy output of between 2 and 30 watts per square centimeter of heater surface. The choice of power density depends on the needs of the specific application to ensure that the heater can provide appropriate heating in a given environment.

Product Parameter

SIZE

CUSTOMIZED

MATERIAL

SS304/SS316

VOLTAGE

12-240v

POWER

CUSTOMIZED

SURFACE LOADING

2-30W/CM2

THREAD STANARD

GB/BSP/NPT

LEAD WIRE

CUSTOMIZED

APPLICATION

WATER, AIR, OIL, MOULD etc.



Model Voltage(V) Power(W) High temperature wire length(mm)
φ6X30 220 60 250
φ6X40 220 80 250
φ6X50 220 100 250
φ6X60 220 100 250
φ6X70 220 120 250
φ6X80 220 120 250
φ6X100 220 150 250
φ6X120 220 200 250
φ6X150 220 250 250
φ6X200 220 250 250
φ6X250 220 300 250
φ6X300 220 350 250
φ8X30 220 80 250
φ8X40 220 100 250
φ8X50 220 100 250
φ8X60 220 100 250
φ8X70 220 120 250
φ8X80 220 120 250
φ8X100 220 150 250
φ8X120 220 200 250
φ8X150 220 250 250
φ8X200 220 300 250
φ8X250 220 400 250
φ8X300 220 450 250
φ10X30 220 80 250
φ10X40 220 100 250
φ10X50 220 100 250
φ10X60 220 120 250
φ10X70 220 150 250
φ10X80 220 150 250
φ10X90 220 200 250
φ10X100 220 200 250
φ10X120 220 250 250
φ10X150 220 300 250
φ10X180 220 350 250
φ10X200 220 400 250
φ10X220 220 450 250
φ10X250 220 500 250
φ10X280 220 550 250
φ10X300 220 600 250
φ10X320 220 650 250
φ10X350 220 700 250
φ10X400 220 800 250
φ10X450 220 800 250
φ10X500 220 1000 250
φ10X550 220 1000 250
φ10X600 220 1000 250
φ12X30 220 80 250
φ12X35 220 100 250
φ12X40 220 100 250
φ12X50 220 120 250
φ12X60 220 150 250
φ12X70 220 150 250
φ12X80 220 150 250
φ12X90 220 200 250
φ12X100 220 200 250
φ12X120 220 250 250
φ12X150 220 300 250
φ12X180 220 350 250
φ12X200 220 400 250
φ12X220 220 450 250
φ12X250 220 500 250
φ12X280 220 550 250
φ12X300 220 600 250
φ12X320 220 650 250
φ12X350 220 700 250
φ12X400 220 800 250
φ12X450 220 900 250
φ12X500 220 1000 250
φ12X550 220 1000 250
φ12X600 220 1200 250
φ14X50 220 150 250
φ14X60 220 150 250
φ14X70 220 150 250
φ14X80 220 200 250
φ14X100 220 250 250
φ14X120 220 250 250
φ14X150 220 350 250
φ14X200 220 400 250
φ14X250 220 500 250
φ14X300 220 600 250
φ14X350 220 700 250
φ14X400 220 800 250
φ14X450 220 900 250
φ14X500 220 1000 250
φ16X50 220 150 250
φ16X60 220 150 250
φ16X70 220 200 250
φ16X80 220 200 250
φ16X100 220 250 250
φ16X120 220 300 250
φ16X140 220 350 250
φ16X150 220 350 250
φ16X160 220 350 250
φ16X180 220 400 250
φ16X200 220 450 250
φ16X220 220 500 250
φ16X250 220 600 250
φ16X275 220 600 250
φ16X300 220 700 250
φ16X320 220 700 250
φ16X350 220 800 250
φ16X380 220 900 250
φ16X400 220 1000 250
φ16X420 220 1000 250
φ16X450 220 1100 250
φ16X480 220 1100 250
φ16X500 220 1200 250
φ16X550 220 1300 250
φ16X600 220 1500 250
φ16X650 220 1500 250
φ16X700 220 1600 250
φ16X750 220 1800 250
φ16X800 220 1800 250
φ18X100 220 250 250
φ18X120 220 300 250
φ18X150 220 350 250
φ18X200 220 450 250
φ18X250 220 600 250
φ18X300 220 800 250
φ20X70 220 200 250
φ20X80 220 200 250
φ20X100 220 250 250
φ20X120 220 300 250
φ20X150 220 350 250
φ20X180 220 400 250
φ20X200 220 500 250
φ20X220 220 500 250
φ20X250 220 600 250
φ20X280 220 700 250
φ20X300 220 800 250
φ20X320 220 800 250
φ20X350 220 1000 250
φ20X375 220 1000 250
φ20X400 220 1000 250
φ20X420 220 1100 250
φ20X450 220 1200 250
φ20X480 220 1400 250
φ20X500 220 1500 250
φ20X520 220 1500 250
φ20X550 220 1500 250
φ20X580 220 1500 250
φ20X600 220 1600 250
φ20X650 220 1600 250
φ20X700 220 1800 250
φ20X750 220 1800 250
φ20X800 220 2000 250
φ20X850 220 2000 250
φ20X900 220 2000 250
φ20X1000 220 2200 250
