Heating Equipment

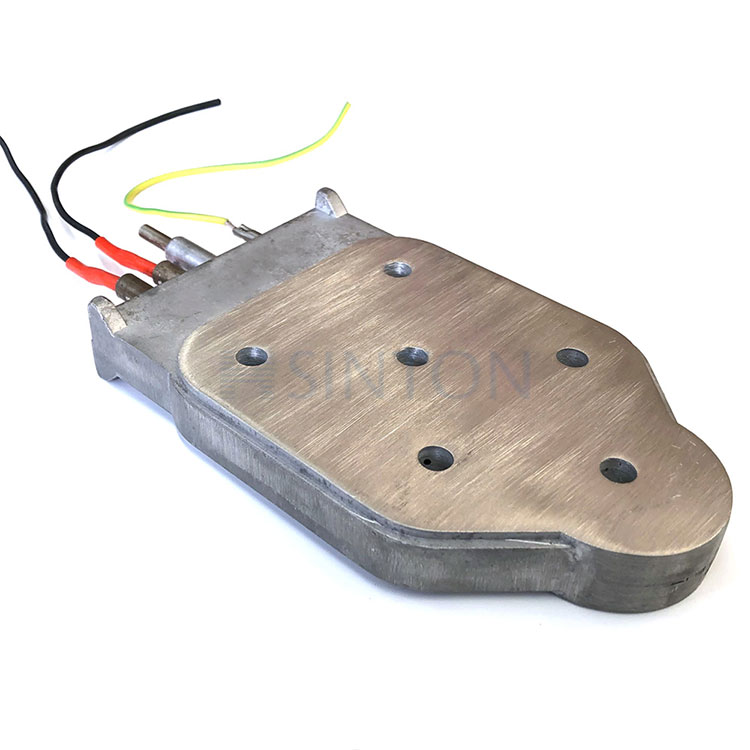

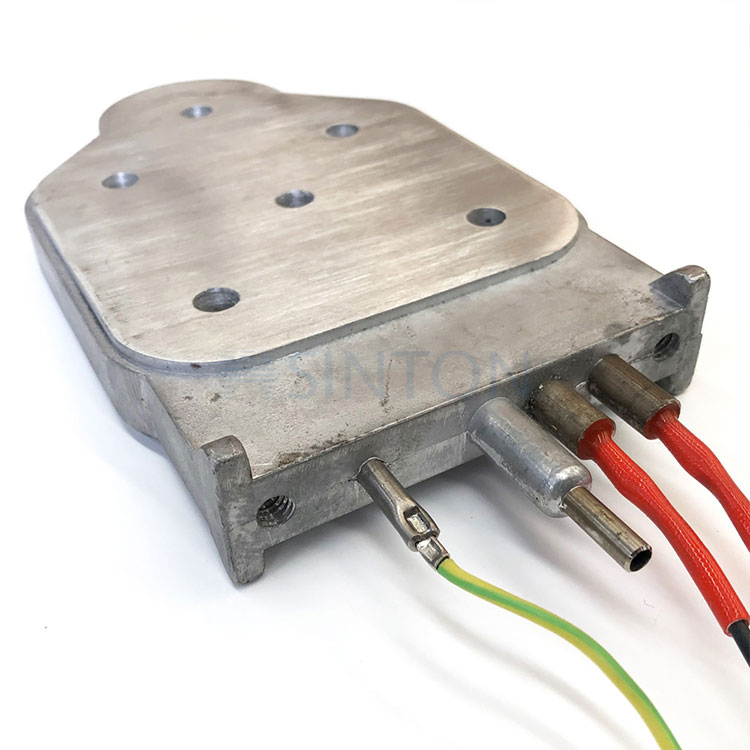

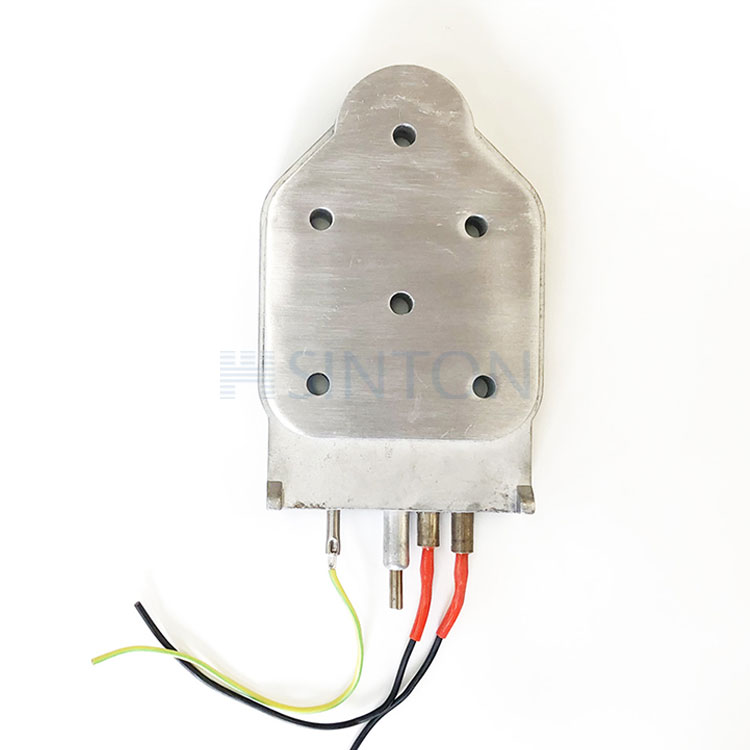

Electric heating plate for laminator is a heating element used in laminating process, made of high thermal conductivity metal material, embedded with electric heating wire and electric heating tube, heated by current to achieve the desired temperature. Its main function is to provide a uniform and stable heat source to ensure that the laminating material can be uniformly heated during the hot pressing process, thereby achieving the best laminating effect. The back of the electric heating plate for laminator is equipped with insulation material to reduce heat loss and improve thermal efficiency. After the electric heating plate is electrified, the heating element generates heat, and the metal plate evenly conducts this heat to its surface. The laminated material softens or melts under the high temperature of the electric heating plate, and achieves bonding or forming under pressure.
Product Parameter
Type | AREA | Size (mm) | Voltage (V) | Power (W) | Technology |
XT-FQTC-Φ250X255 | 1 area | Φ250X255 | 3X400 | 8000 | 1.The use en Vironment temperature -20 degree C to 60 degree 2.Leakage current less than 0.5mA 3.Insulation resistance more than 5M 4.withstand voltage: 1500V 5.wattage tolerance +5%-10% |
XT-FQTC-Φ200X220 | 2 area | Φ200X220 | 230 | 4100 | |
XT-FQTC-Φ200X175 | 3 area | Φ200X175 | 230 | 2400 | |
XT-FQTC-Φ152/Φ140X310 | 4 area | Φ152/Φ140X310 | 230 | 3600 | |
XT-FQTC-Φ305X295 | 1 area | Φ305X295 | 3X400 | 1000 | |
XT-FQTC-Φ245X260 | 2 area | Φ245X260 | 230 | 4130 | |
XT-FQTC-Φ245X215 | 3 area | Φ245X215 | 230 | 3540 | |
XT-FQTC-Φ165/Φ185X365 | 4 area | Φ165/Φ185X365 | 230 | 4600 | |
XT-FQTC-Φ217X190 | 1 area | Φ217X190 | 230 | 4000 | |
XT-FQTC-Φ170X380 | 2 area | Φ170X380 | 230 | 5200 | |
XT-FQTC-Φ123X220 | 3 area | Φ123X220 | 230 | 2600 | |
XT-FQTC-Φ375X345 | 1 area | Φ375X345 | 3X400 | 16000 | |
XT-FQTC-Φ295X315 | 2 area | Φ295X315 | 230 | 6350 | |
XT-FQTC-Φ295X255 | 3 area | Φ295X255 | 230 | 4940 | |
XT-FQTC-Φ215/Φ195X430 | 4 area | Φ215/Φ195X430 | 230 | 5930 | |
XT-FQTC-Φ350X360 | 1 area | Φ350X360 | 3X400 | 18000 | |
XT-FQTC-Φ350X120 | 2 area | Φ350X120 | 3X400 | 6500 | |
XT-FQTC-Φ310X350 | 3 area | Φ310X350 | 3X400 | 8600 | |
XT-FQTC-Φ280X300 | 4 area | Φ280X300 | 3X400 | 4600 | |
XT-FQTC-Φ250X290 | 5 area | Φ250X290 | 3X400 | 4200 | |
XT-FQTC-Φ250/Φ210X510 | 6 area | Φ250/Φ210X510 | 3X400 | 8600 | |
XT-FQTC-Φ75X162 | Φ75X162 | 230 | 1400 | ||
XT-FQTC-Φ90X220 | Φ90X220 | 230 | 1500 | ||
XT-FQTC-Φ130X280 | Φ130X280 | 230 | 2200 | ||
XT-FQTC-Φ140X325 | Φ140X325 | 230 | 4000 | ||
XT-FQTC-Φ150X420 | Φ150X420 | 400 | 5000 | ||
XT-FQTC-Φ175X460 | Φ175X460 | 400 | 7000 | ||
XT-FQTC-Φ200X550 | Φ200X550 | 400 | 12000 |
