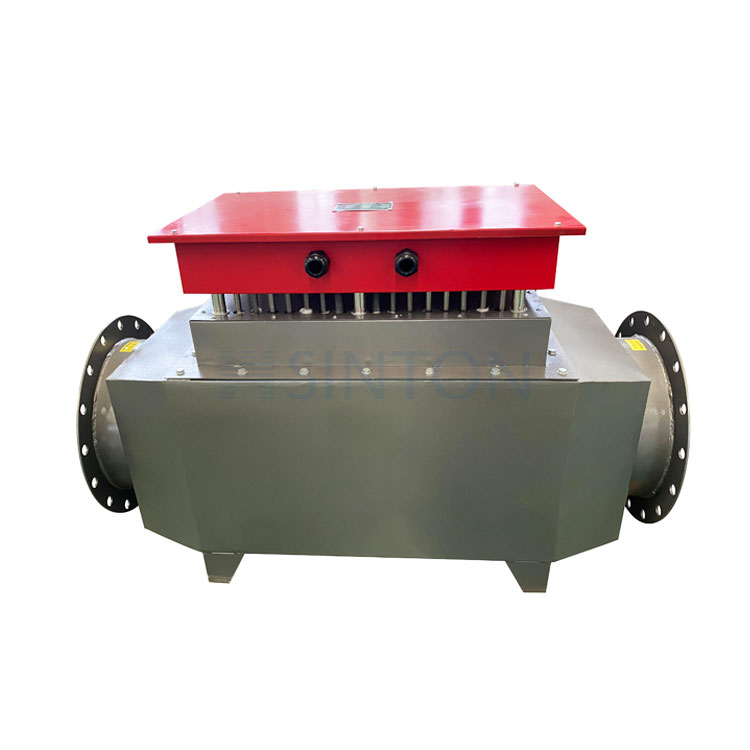

FD-60 Industrial Electric Fast Heating Air Duct Heater with Blower is an efficient heating device specially designed for industrial environments. It uses advanced electric heating technology to heat the air quickly and stably to meet the needs of various industrial productions. The equipment has multiple protection measures and can operate safely and reliably in harsh environments. For example, it is equipped with an overheating protection device that can automatically cut off the power supply when the temperature exceeds the set value, effectively avoiding equipment damage. In addition, it is also waterproof and moisture-proof, making it suitable for various humid or corrosive environments.
FD-60 is widely used in chemical, pharmaceutical, food, metallurgy and other industrial fields. It can be used in processes such as heating air, drying materials, and preheating pipes to improve production efficiency and product quality. The heater is made of high-quality materials and is resistant to high temperatures and corrosion, and can withstand long-term use. At the same time, it has a compact structure and takes up little space. Products of different sizes and powers can be customized according to customer needs.
Product Parameter
| Model | Power | Inner Chamber size | Diameter of air outlet |
| KW | MM | MM | |
| FD-10 | 10 | 300*300*300 | DN100 |
| FD-20 | 20 | 500*300*300 | DN200 |
| FD-30 | 30 | 400*400*400 | DN300 |
| FD-40 | 40 | 500*400*400 | DN300 |
| FD-50 | 50 | 600*400*400 | DN350 |
| FD-60 | 60 | 700*400*400 | DN350 |
| FD-80 | 80 | 700*400*500 | DN350 |
| FD-100 | 100 | 900*400*500 | DN350 |
| FD-120 | 120 | 1000*400*500 | DN350 |
| FD-150 | 150 | 700*750*500 | DN400 |
| FD-180 | 180 | 800*750*500 | DN400 |
| FD-240 | 240 | 1000*750*600 | DN500 |
| FD-300 | 300 | 1200*750*600 | DN500 |
| FD-360 | 360 | 1000*800*900 | DN500 |
| FD-420 | 420 | 1200*800*900 | DN500 |
| FD-480 | 480 | 1400*800*900 | DN500 |
| FD-600 | 600 | 1600*1000*1000 | DN600 |
| FD-800 | 800 | 1800*1000*1000 | DN600 |
| FD-1000 | 1000 | 2000*1000*1000 | DN600 |
details
details
The versatility of Sinton air duct heaters allows for their application across multiple industrial uses, notably:
·Heating processes within manufacturing setups
·Air pre-heating in HVAC systems for sizable industrial edifices
·Drying and curing operations in the pharmaceutical, food, and painting sectors
·Chemical processing that necessitates exact temperature regulation
