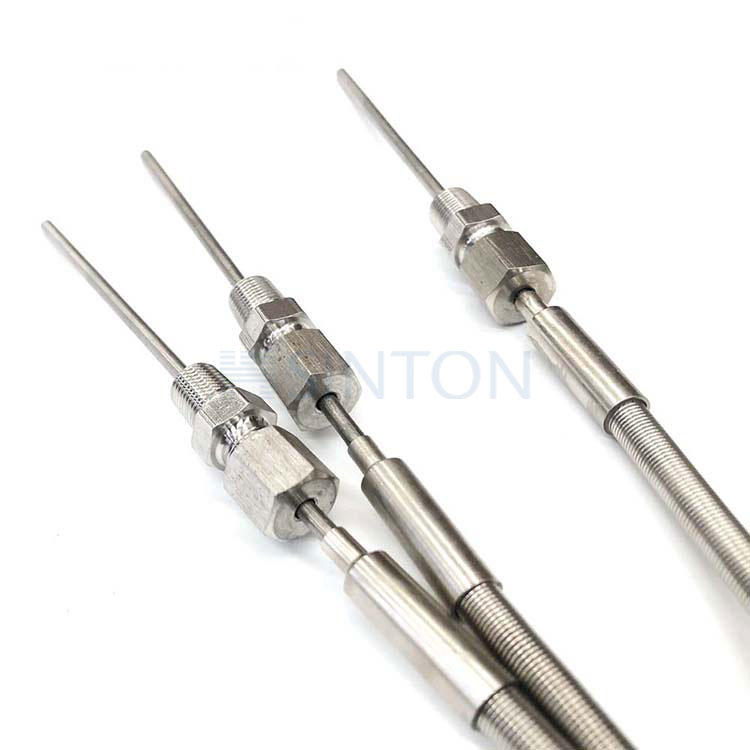

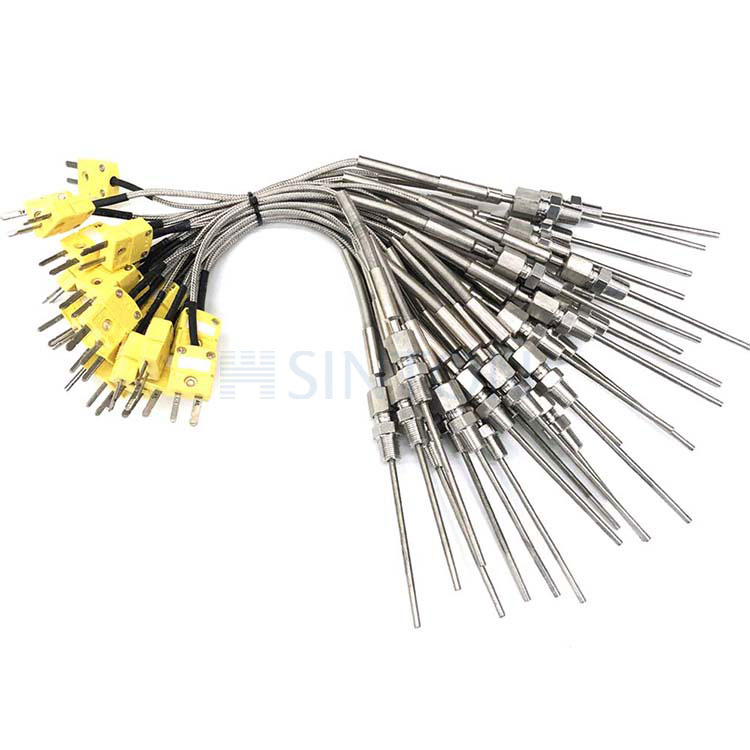

Elbow Tube Connection Thermocouple

The Elbow Tube Connection Thermocouple is a specially designed thermocouple that is typically used in environments that require flexible installation and complex measurement locations. Its appearance structure includes the following key parts.
Thermocouple Sensor: Measures temperature through the difference in electromotive force generated at the junction of different metals.
Thermocouple contact: The temperature measurement contact is located at the end of the elbow and directly contacts the surface of the object being measured.
Elbow structure: The elbow design enables thermocouples to be installed and measured in narrow or complex spaces.
Protective tube: protects the thermocouple wire from mechanical damage and chemical corrosion while ensuring its isolation from the measurement environment.

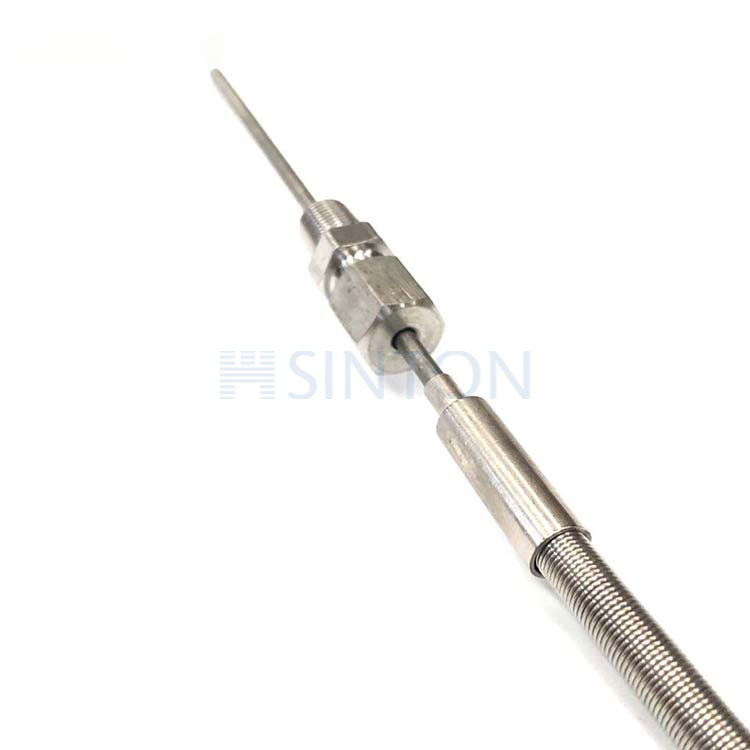

Threaded connection: The threaded design facilitates fixation of the thermocouple in equipment or pipes, ensuring stable installation and tight sealing.

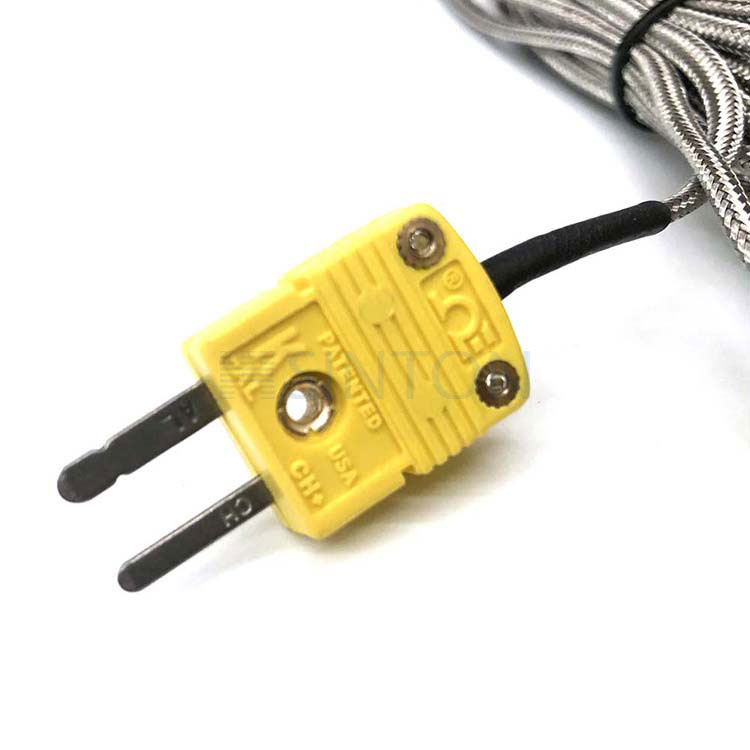

Lead: Transmits the voltage signal generated by the thermocouple to the measuring instrument.

Product Parameter

Model Graduation mark Temperature range Mounting& Fixing
WRN K 0-1000°C 1.without Fixing Device
2.Threaded Connector
3.Movable Flange
4.Fixed Flange
5.Elbow Tube Connection
6.Threaded Cone Connection

7.Straight Tube Connection
8.Fixed Threaded Tube Connection
9.Movable Threaded Tube Connection
WRE E 0-700°C
WRF J 0-600°C
WRC T 0-400°C
WRP S 0-1600°C
WRQ R 0-1600°C
WRR B 0-1800°C
WRM N 0-1100°C
