Heating Equipment

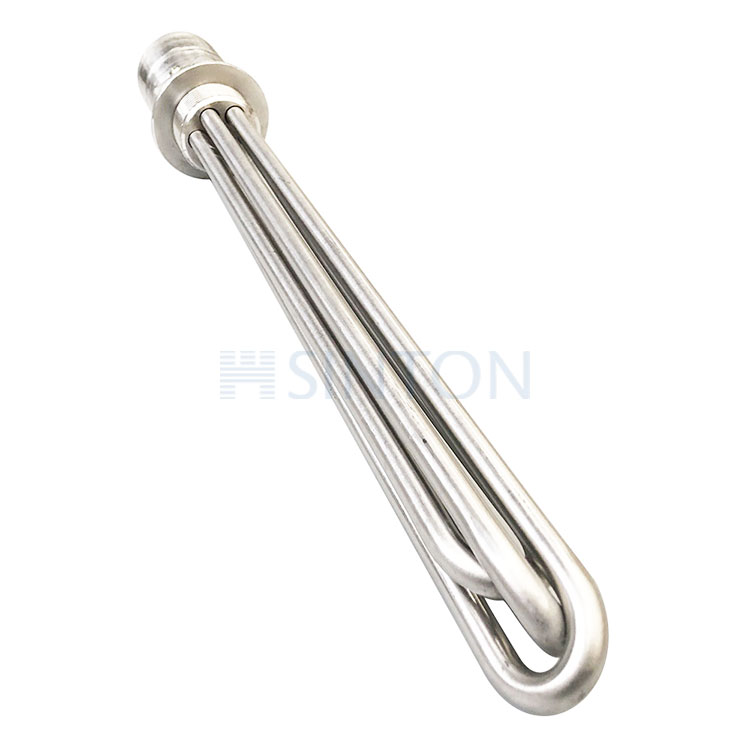

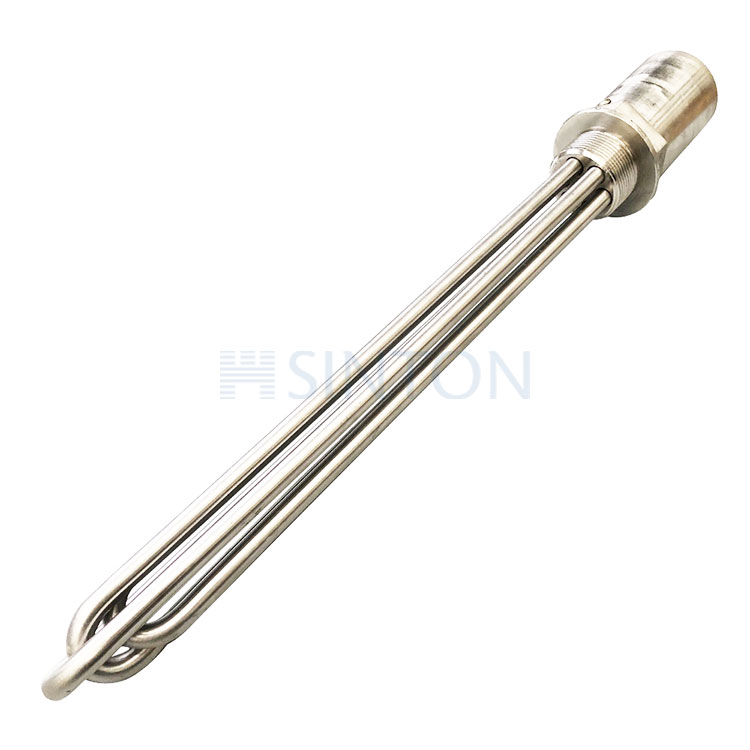

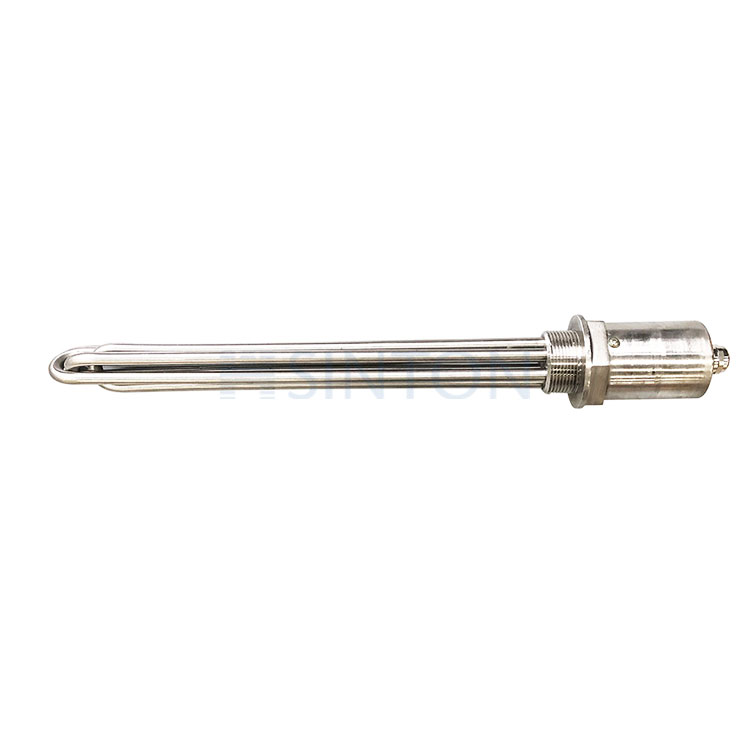

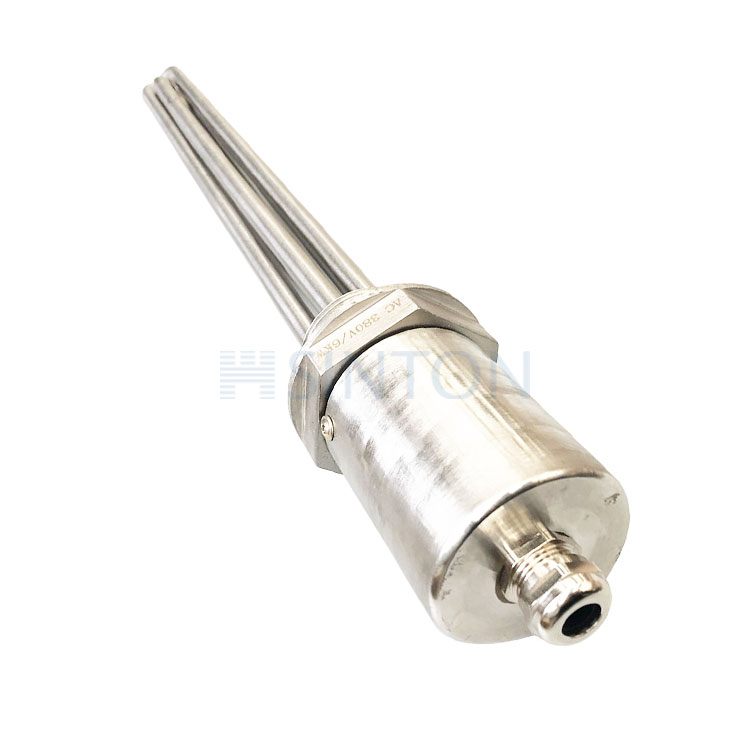

The threaded immersion boiler heater is an electric heating element used for heating liquids in boilers, water heaters, and other industrial applications. It is equipped with heating coils and resistors inside, and the threaded design is easy to install and disassemble the heating system. It achieves rapid heating by directly immersing the heating element in the liquid, with advantages such as high thermal efficiency, fast heating speed, and precise temperature control. Its threaded design not only increases the heating surface area, but also improves heat transfer efficiency, ensures uniform heating, and reduces the risk of local overheating. Due to its efficient heat transfer capability, the threaded immersion boiler heater can reach the predetermined temperature in a short period of time, reducing energy consumption.
Product Parameter
Explosion-proof flange immersion heater specification
Specifications | Power Kw | Flanged Immersion Heater for Liquid | Flanged Heater for Air | Temperature control range | Power Supply | ||
size (mm) | Us (pieces of u) | size (mm) | Us (pieces of u) | ||||
XTFL-5 | 5 | DN80*500 | 3 | DN100*600 | 3 | RT-700 | Single-phase 220v |
XTFL-10 | 10 | DN80*700 | 3 | DN100*700 | 6 | Three-phase380V,50HZ | |
XTFL-15 | 15 | DN125*700 | 6 | DN125*700 | 9 | ||
XTFL-20 | 20 | DN150*800 | 6 | DN150*900 | 9 | ||
XTFL-30 | 30 | DN150*800 | 9 | DN150*1000 | 12 | ||
XTFL-40 | 40 | DN200*1000 | 12 | DN200*1200 | 15 | ||
XTFL-50 | 50 | DN200*1000 | 12 | DN200*1200 | 15 | ||
XTFL-60 | 60 | DN200*1200 | 15 | DN250*1300 | 18 | ||
XTFL-80 | 80 | DN250*1400 | 18 | DN250*1500 | 18 | ||
XTFL-100 | 100 | DN250*1600 | 18 | DN300*1600 | 24 | ||
XTFL-120 | 120 | DN250*1600 | 18 | DN300*1600 | 27 | ||
XTFL-150 | 150 | DN300*1600 | 24 | DN350*1600 | 36 | ||
XTFL-180 | 180 | DN300*1600 | 27 | DN350*1800 | 36 | ||
XTFL-200 | 200 | DN300*1800 | 27 | DN400*1800 | 45 | ||
XTFL-240 | 240 | DN350*1800 | 36 | DN400*1800 | 54 | ||
XTFL-280 | 280 | DN350*1800 | 36 | DN500*1600 | 72 | ||
XTFL-300 | 300 | DN400*1800 | 42 | DN500*1600 | 72 | ||
XTFL-360 | 360 | DN400*1800 | 45 | DN500*1800 | 72 | ||
XTFL-400 | 400 | DN400*1800 | 54 | DN600*1800 | 84 | ||
XTFL-450 | 450 | DN450*1800 | 60 | DN600*1800 | 90 | ||
XTFL-500 | 500 | DN500*1800 | 72 | DN700*1800 | 108 | ||
XTFL-600 | 600 | DN600*1800 | 84 | DN800*1800 | 120 | ||
XTFL-700 | 700 | DN600*1800 | 90 | DN900*1800 | 144 | ||
XTFL-800 | 800 | DN700*1800 | 108 | DN900*1800 | 180 | ||
XTFL-900 | 900 | DN800*1800 | 120 | DN900*1800 | 180 | ||
XTFL-1000 | 1000 | DN900*1800 | 144 | DN1000*1800 | 216 |
