Heating Equipment

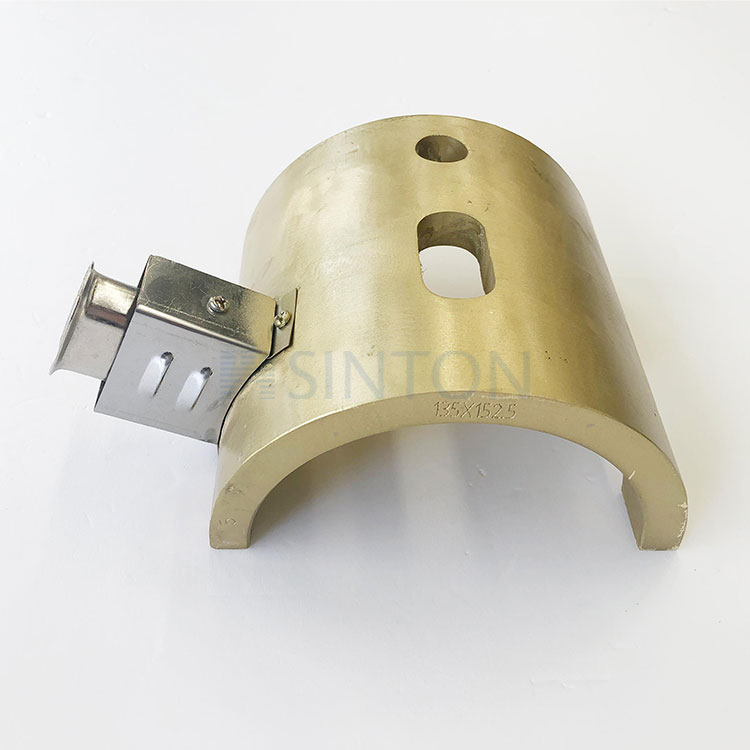

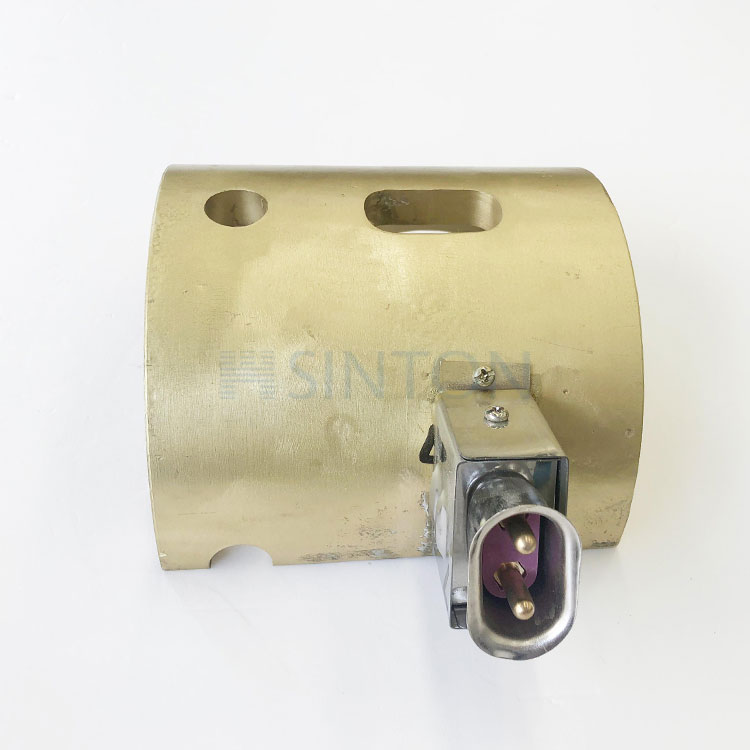

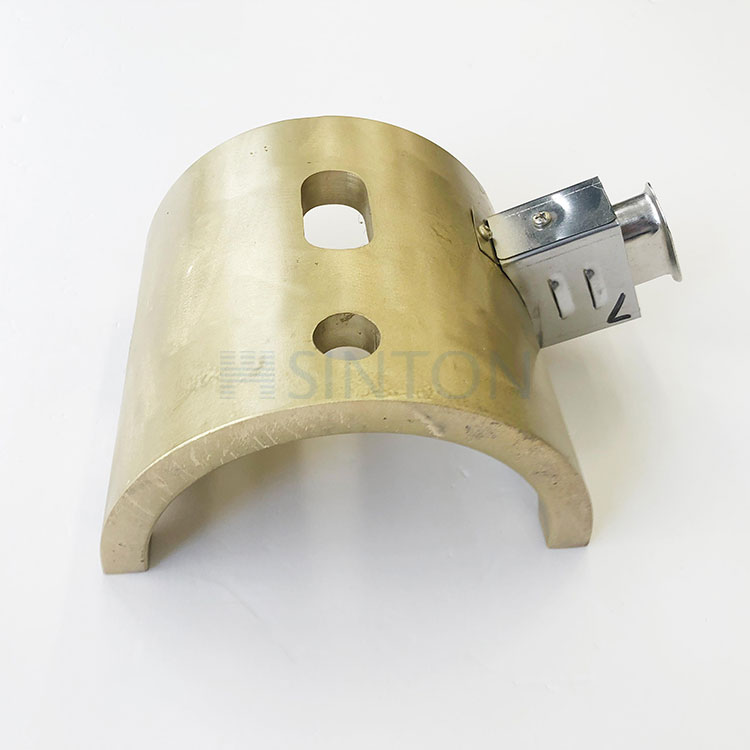

Cast copper heater is a kind of equipment for heating metal materials, widely used in industrial production field. The heater is made of cast copper material with good thermal conductivity and high temperature resistance, which can heat the metal workpiece quickly and evenly and improve the production efficiency. The cast copper heater can be heated by resistance heating, induction heating, etc. It features easy operation, low energy consumption and long service life. Compact, stable and reliable, the product can meet the heating needs of different workpieces and is widely used in metal processing, steel smelting, machinery manufacturing and other industries. Due to its high efficiency and energy-saving features, the cast copper heater has been widely noticed and recognized.
Cast copper heaters are suitable for high temperature heating, the surface load can reach 5-8W/cm², good thermal conductivity, uniform heat generation, process structure is similar to aluminum heating.
Applications:
·Beverage Equipment
·Blown Film Discs
·Bun toasters
·Die and Nozzle Heaters
·Food Warming Equipment
·Frying Equipment
·Glue pots
·Laminating Equipment
·Liquid Heat Exchangers
·Packaging Seal Bars
·Plastic Extruder Barrels
·Plastic Extrusion Dies
·Platen Heaters
·Silicon Wafer Processing Equipment
·Silk Screen Equipment
·Vacuum Forming Equipment
·Wave Solder Equipment
Casting material:
Aluminum
Material: Standard Aluminum 319 (Optional Aluminum 356 in Learn More)
Maximum Surface Temperature: 700°F (371°C)
Density (lb/in3): 0.101
Coefficient of Linear Thermal Expansion (in/in/°F × 10-6): 12.7 @ 68° – 572°F
Thermal Conductivity (BTU-in/hr-ft2-°F): 754
Bronze
Material: Bronze
Maximum Surface Temperature: 1350°F (732°C)
Density (lb/in3): 0.272
Coefficient of Linear Thermal Expansion (in/in/°F × 10-6): 9 @ 68° – 572°F
Thermal Conductivity (BTU-in/hr-ft2-°F): 437
Brass
Material: Yellow Brass
Maximum Surface Temperature: 1200°F (649°C)
Density (lb/in3): 0.304
Coefficient of Linear Thermal Expansion (in/in/°F × 10-6): 12.2 @68° – 500°F
Thermal Conductivity (BTU-in/hr-ft2-°F): 582
Product Parameter
Type | AREA | Size (mm) | Voltage (V) | Power (W) | Technology |
XT-FQTC-Φ250X255 | 1 area | Φ250X255 | 3X400 | 8000 | 1.The use en Vironment temperature -20 degree C to 60 degree 2.Leakage current less than 0.5mA 3.Insulation resistance more than 5M 4.withstand voltage: 1500V 5.wattage tolerance +5%-10% |
XT-FQTC-Φ200X220 | 2 area | Φ200X220 | 230 | 4100 | |
XT-FQTC-Φ200X175 | 3 area | Φ200X175 | 230 | 2400 | |
XT-FQTC-Φ152/Φ140X310 | 4 area | Φ152/Φ140X310 | 230 | 3600 | |
XT-FQTC-Φ305X295 | 1 area | Φ305X295 | 3X400 | 1000 | |
XT-FQTC-Φ245X260 | 2 area | Φ245X260 | 230 | 4130 | |
XT-FQTC-Φ245X215 | 3 area | Φ245X215 | 230 | 3540 | |
XT-FQTC-Φ165/Φ185X365 | 4 area | Φ165/Φ185X365 | 230 | 4600 | |
XT-FQTC-Φ217X190 | 1 area | Φ217X190 | 230 | 4000 | |
XT-FQTC-Φ170X380 | 2 area | Φ170X380 | 230 | 5200 | |
XT-FQTC-Φ123X220 | 3 area | Φ123X220 | 230 | 2600 | |
XT-FQTC-Φ375X345 | 1 area | Φ375X345 | 3X400 | 16000 | |
XT-FQTC-Φ295X315 | 2 area | Φ295X315 | 230 | 6350 | |
XT-FQTC-Φ295X255 | 3 area | Φ295X255 | 230 | 4940 | |
XT-FQTC-Φ215/Φ195X430 | 4 area | Φ215/Φ195X430 | 230 | 5930 | |
XT-FQTC-Φ350X360 | 1 area | Φ350X360 | 3X400 | 18000 | |
XT-FQTC-Φ350X120 | 2 area | Φ350X120 | 3X400 | 6500 | |
XT-FQTC-Φ310X350 | 3 area | Φ310X350 | 3X400 | 8600 | |
XT-FQTC-Φ280X300 | 4 area | Φ280X300 | 3X400 | 4600 | |
XT-FQTC-Φ250X290 | 5 area | Φ250X290 | 3X400 | 4200 | |
XT-FQTC-Φ250/Φ210X510 | 6 area | Φ250/Φ210X510 | 3X400 | 8600 | |
XT-FQTC-Φ75X162 | Φ75X162 | 230 | 1400 | ||
XT-FQTC-Φ90X220 | Φ90X220 | 230 | 1500 | ||
XT-FQTC-Φ130X280 | Φ130X280 | 230 | 2200 | ||
XT-FQTC-Φ140X325 | Φ140X325 | 230 | 4000 | ||
XT-FQTC-Φ150X420 | Φ150X420 | 400 | 5000 | ||
XT-FQTC-Φ175X460 | Φ175X460 | 400 | 7000 | ||
XT-FQTC-Φ200X550 | Φ200X550 | 400 | 12000 |
