Ultra-Thin Polyimide Film Heater

Description

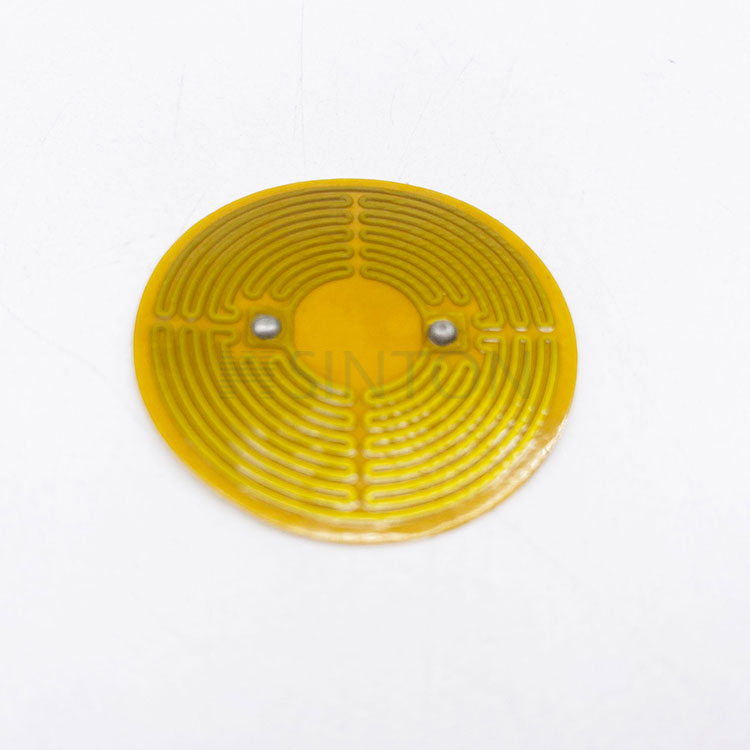

The Ultra-Thin Polyimide Film Heater takes extremely thin polyimide film as the core, and the interior is precisely processed metal foil or wire, combined by a special process, with a thickness of only 0.05-0.2mm. Polyimide film combines electrical insulation and environmental resistance. Some products are equipped with special coatings or back adhesives to enhance performance or facilitate installation, making them suitable for harsh space scenarios.

Advantages

1.Ultra-thin and lightweight, with a starting thickness of 0.05mm and a lifting capacity of 0.01g/cm², saving space and reducing load.

2.It has excellent flexibility, can be bent and rolled, conforms to irregular curved surfaces, and conducts heat evenly.

3.It heats up quickly and efficiently, 30% to 50% faster than traditional heaters, saving energy and improving efficiency.

4.It has a wide temperature resistance range (-200°C to 250°C), and some can withstand even more extreme temperatures.

5.Resistant to chemical corrosion, resistant to various chemical substances, solvents and corrosive gases.

6.The temperature control is accurate, reaching over ±1°C, meeting the requirements of high precision.

7.It has strong customization capabilities, and the size, power, etc. can be customized as needed.

Specifications

Parameter	Range/Typical value	Explanation
Voltage	1.5V - 220V (AC/DC), customizable	Adapt to different power demands
Power	0.5W - 500W, depending on the design	Designed according to heating requirements
Power density	0.05W/cm² - 10W/cm², customizable	Adapt to different heating speeds
Size	Width: 5mm - 300mm, length: 10mm - 1000mm, can be shaped differently	Adapted installation space
Thickness	0.05mm - 0.2mm	Ultra-thin design
Working temperature	-200°C - 250°C (some higher)	It has a wide temperature resistance range
Connection method	Welding, riveting, quick plugging and unplugging, etc	Choose as needed
Power deviation	< ± 3%, and can be higher	Ensure accurate power
Lead wire specification	0.05mm² - 0.5mm², material is optional	Adapt to environmental and electrical requirements
Protection grade	IP54 - IP68 (Customizable)	It provides protection such as dust-proof and water-proof

Application

1.Medical: Temperature control for blood analyzers and other equipment, prevention of condensation in imaging devices, and use for surgical warm blankets.

2.Electronics: Heat components of mobile phones and other devices to prevent low-temperature failure, facilitating the operation of flexible electronic devices.

3.Aerospace and defense: Heating components of satellites and other equipment, de-icing aircraft, and supporting the low-temperature operation of military equipment.

4.Automobiles: Achieve seat heating, heat lithium batteries to enhance performance, and be used for defrosting rearview mirrors, etc.

5.Industry and Automation: Heating and insulation for chemical equipment, used in food processing equipment, and temperature control for components of automated equipment.

6.Research and Laboratory: Provides constant temperature for analytical instruments and facilitates experiments in low-temperature physics, etc.
